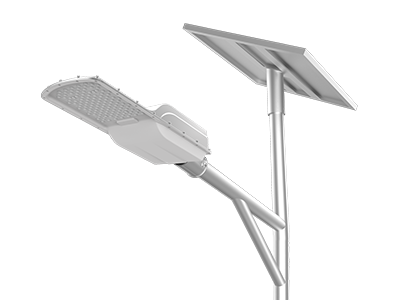

Split Type Solar Street Light

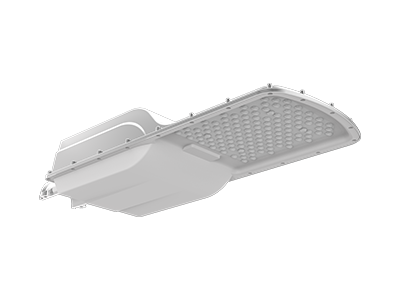

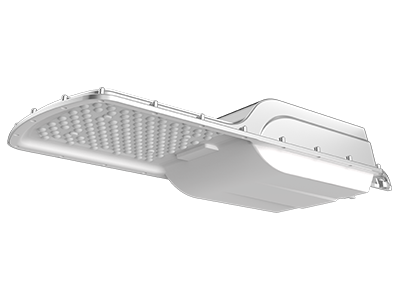

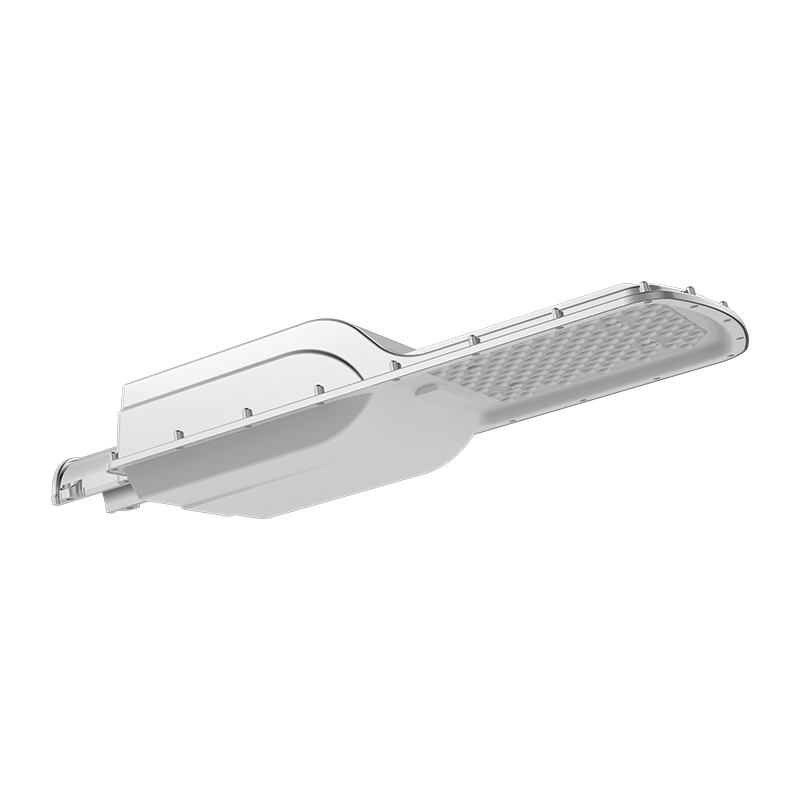

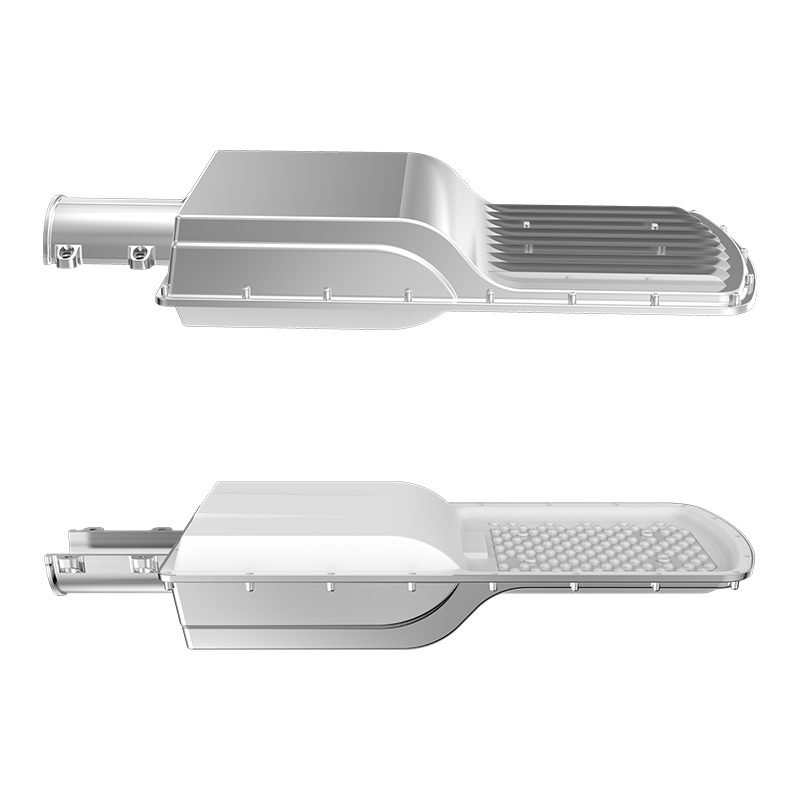

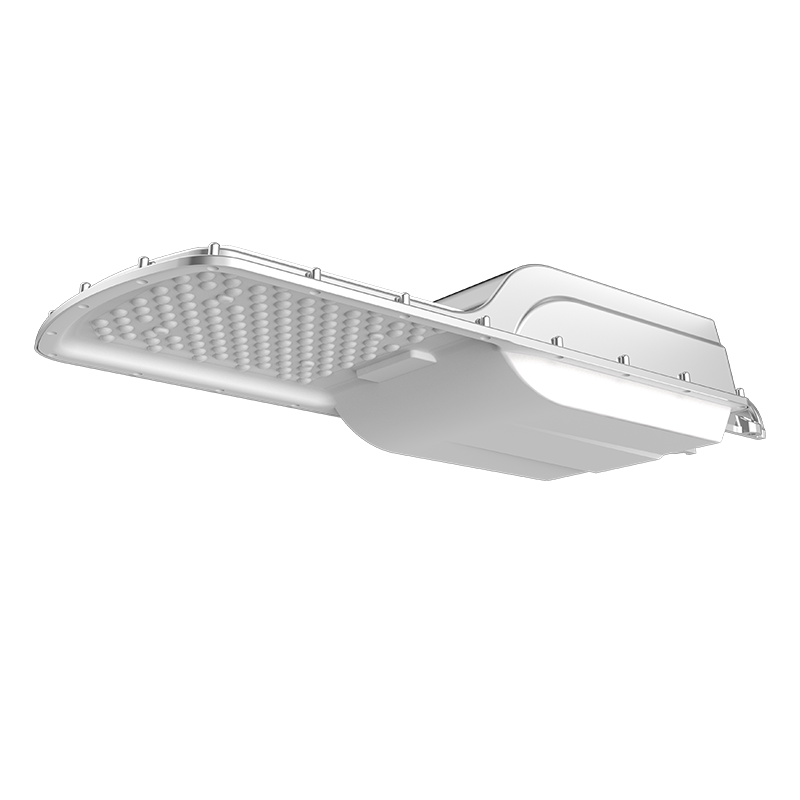

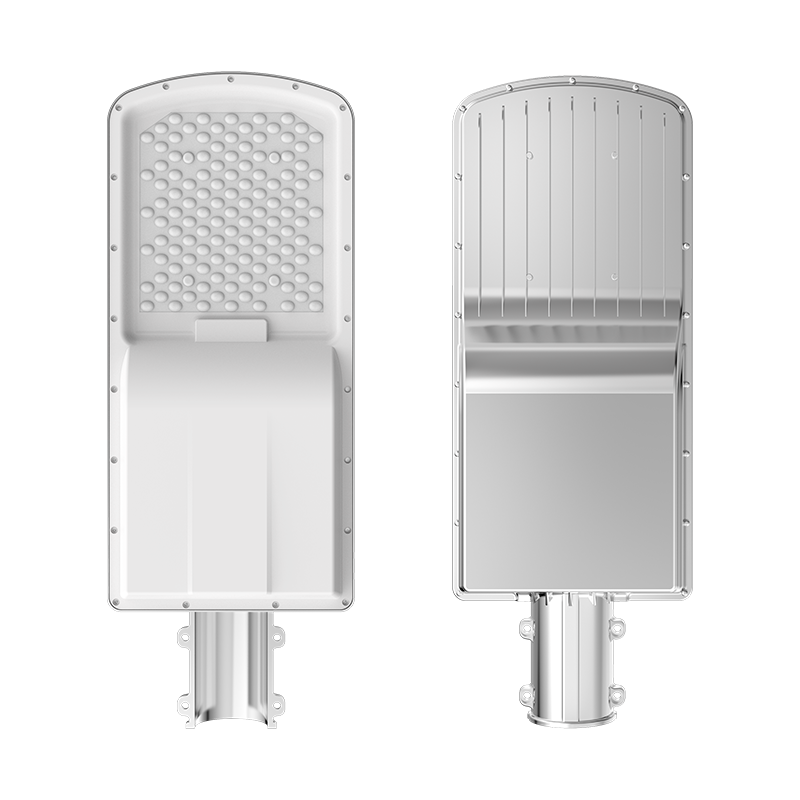

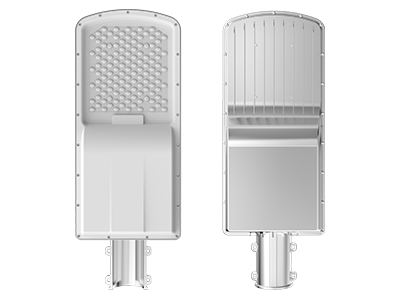

Solar Street Light (YY series)
Compact yet powerful, YP spike lights accent sculptures and shrubs with focused beams. An ultra-clear lens and single-string MPPT charger maximise every ray, making YP the go-to choice when only premium solar LED garden lights and dependable garden solar powered lights will do.
Learn More About：
Split Type Solar Street Light
Download: Solar Street Light (YY series)
Applications:
| Type | YY-80 | YY-100 |
| Solar Panel | 60W / 5V | 85W / 6V |
| LiFePO4 Battery | 192WH | 256WH |
| Charge Cycle Times | 2000 times | |
| Luminous Flux | 3400LM | 4800LM |
| Lamp Power | 20W | 30W |
| LED qty | 120pcs | |
| Lifespan of LED | 50000hrs | |
| Color Temperature | 6000-7000K | |
| Light Distribution | Batwing lens with polarized light | |
| Lighting time(full charged) | 5-7 rainy days | |
| Working temperature | -20℃~60℃ (Charge above 0℃) | |
| Top diameter of pole | 60mm | |
| Mounting height | 5-6m | 7-8m |
| Installation spacing | 20-40m | |
Advantages
Classic All-in-One Integration: The YY Series features a streamlined, high-strength housing that seamlessly integrates solar panels, long-cycle LiFePO4 batteries, and high-efficacy LED modules for a 100% cable-free installation.
Industry-Leading LED Efficacy: Engineered with professional-grade LED chips delivering up to 200lm/W, providing bright, uniform illumination that enhances road safety while significantly reducing energy waste.
Advanced Smart Power Management: Equipped with an intelligent MPPT controller and motion sensor, the system dynamically adjusts output to ensure consistent lighting for 5-7 rainy days, even in challenging climates.
Rapid & Low-Cost Deployment: No trenching or grid connection required. The YY Series supports a "Plug & Play" installation process, making it the perfect choice for remote areas, rural roads, and residential communities.
Ruggedized IP66 Durability: Built to withstand the elements, the YY Series features a corrosion-resistant aluminum alloy body and an IP66/IP67 waterproof rating, ensuring a 10+ year structural lifespan.

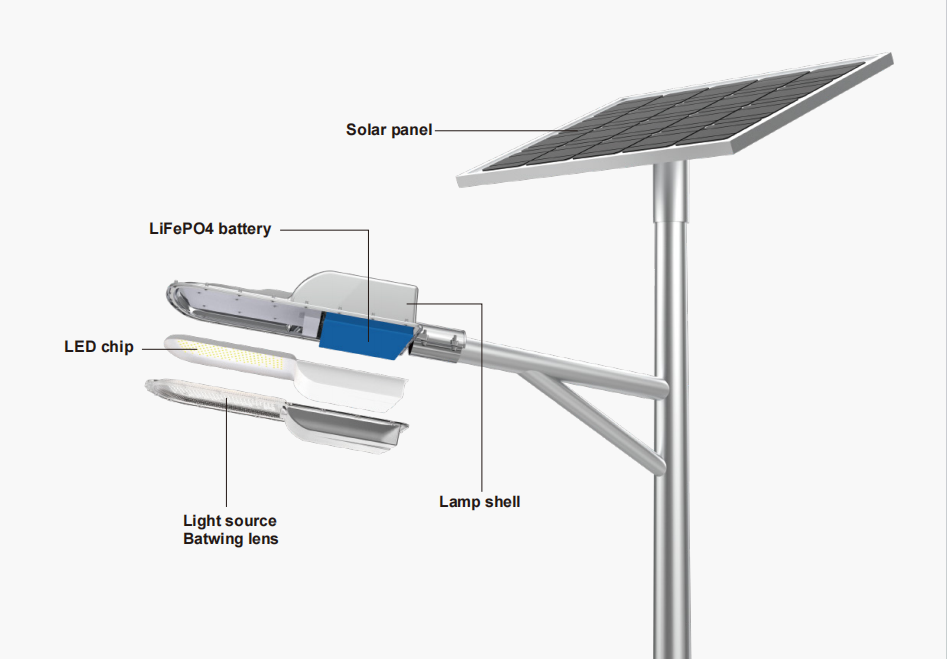

Detail Showcase
Solar Panel
High-efficiency mono modules matched to each model's power draw.
Read More
LiFePO₄ Battery
Grade-A cells deliver stable power and long service life across all three families.
Read More
LED Chip / Light Source
Premium 3030 or 5050 LEDs tuned for garden ambience or accent beams.
Read More
Lamp Shell
Anodised or powder-coated aluminum housings in post, spike or globe formats withstand outdoor extremes.
Read More
Bat-Wing Lens
RoadSmart's patented optic widens beam spread, eliminating dark spots while keeping glare low.
Read More
IPC 5.0 Technology
Five-stage intelligent power,intelligent algorithm to achieve perfect balance of
brightness and discharge time.
Read More

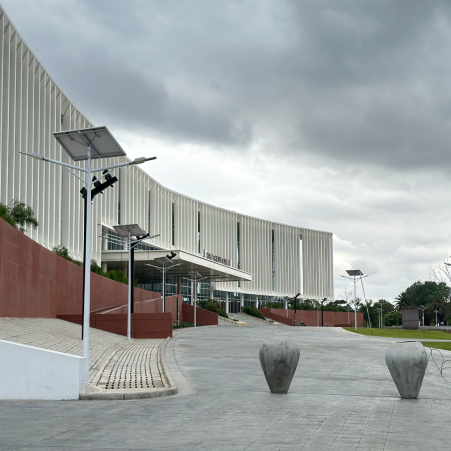

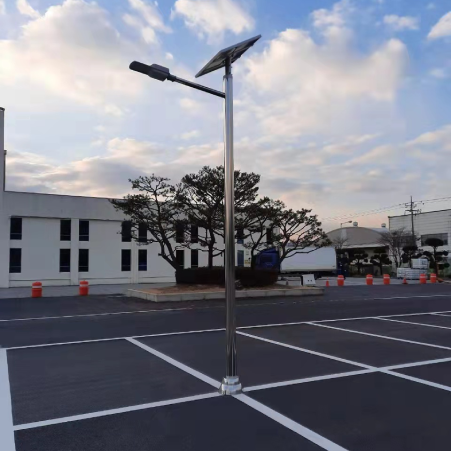

Application
The Gold Standard for Dependable Lighting: YY Series Solar Street Light
The YY Series is one of Roadsmart’s most trusted integrated solar street lighting solutions, deployed in thousands of projects worldwide. Designed for contractors who demand a balance between affordability and high performance, the YY Series simplifies the transition to renewable energy for municipal and private infrastructures.

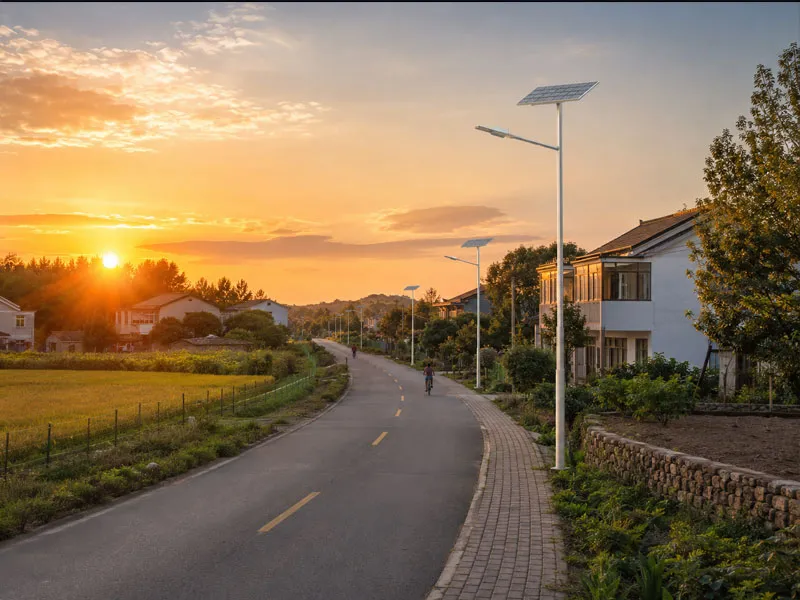

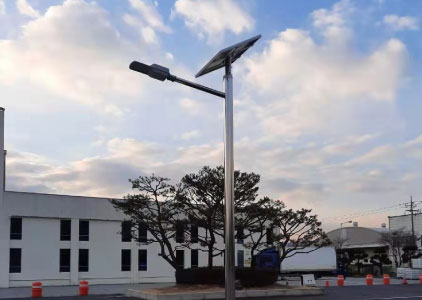

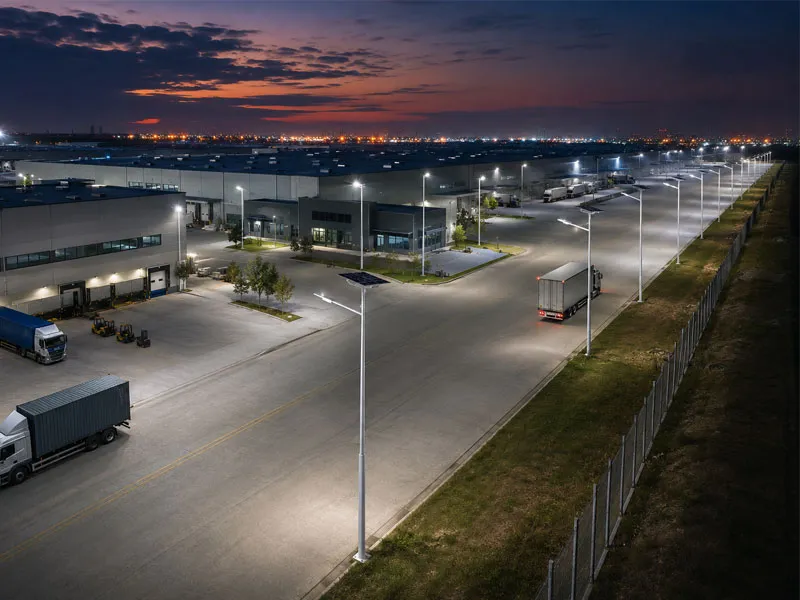

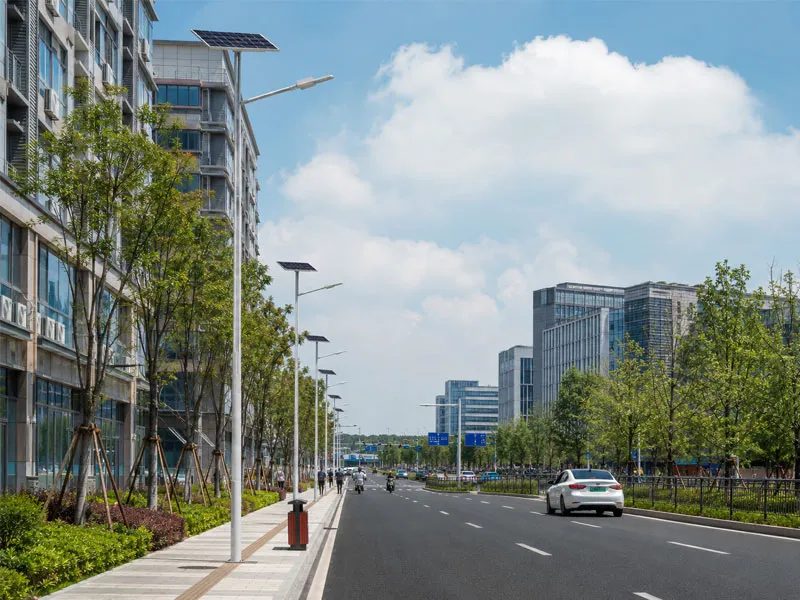

Featuring a high-conversion monocrystalline silicon solar panel, the YY Series ensures fast charging even under low-sunlight conditions. Its deep-cycle LiFePO4 battery system provides superior thermal stability and safety compared to traditional lithium batteries. Whether you are illuminating neighborhood pathways, industrial parking lots, or rural village roads, the YY Series provides a maintenance-free, zero-electricity-bill solution that delivers an immediate Return on Investment (ROI).
With its time-tested design and intelligent energy-saving modes, the YY Series is the smart choice for sustainable, reliable, and cost-efficient outdoor lighting projects.
Delivery
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Support
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
Related Products
FAQ
Are YY globes durable outdoors?
UV-stable polycarbonate and IP65 sealing defend against fading, rain and dust for years of reliable service.
How are they powered?
Integrated mono-crystalline panels and LiFePO₄ batteries provide wire-free, solar-powered operation.
What aesthetic does YY deliver?
A glowing globe design that doubles as garden décor and 360-degree ambient lighting.
