Integrated Solar Street Light
Solar Sailing Light Ⅲ

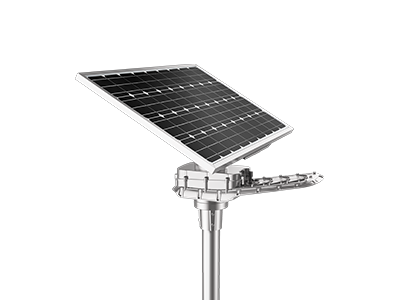

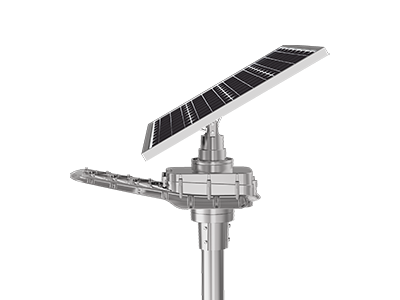

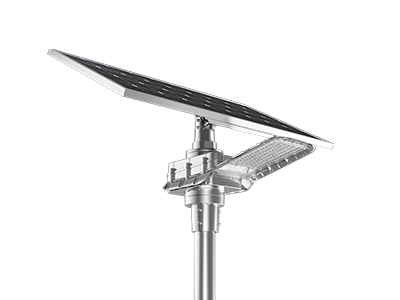

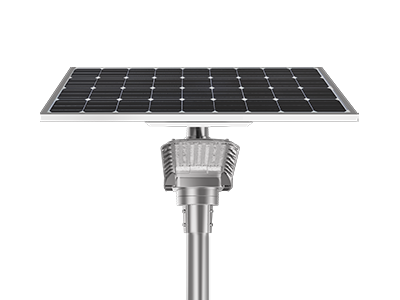

Upgrade to the next level of all-in-two solar street light technology. Solar Sailing Light Ⅲ features a tilt-adjustable “sail” panel for maximum solar harvest plus a separate LED module for flexible aiming.
Learn More About：
Integrated Solar Street Light
Download: Solar Sailing Light Ⅲ

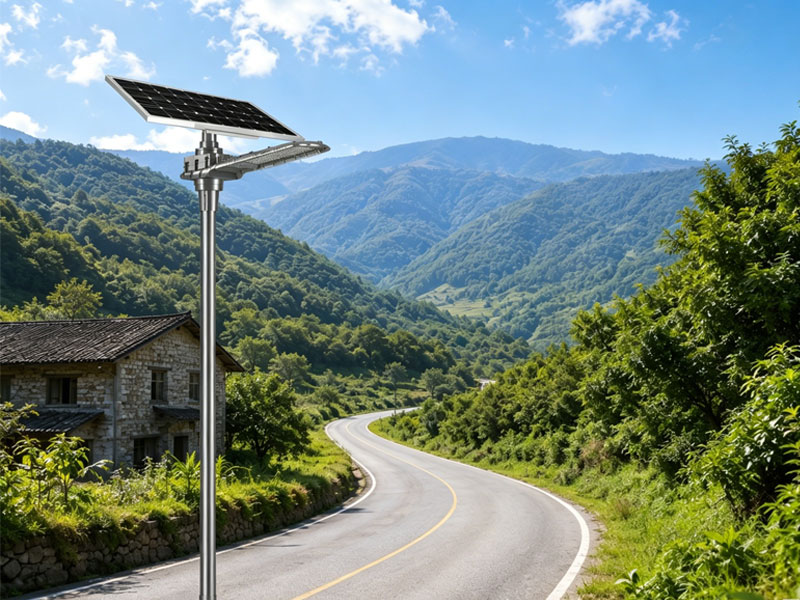

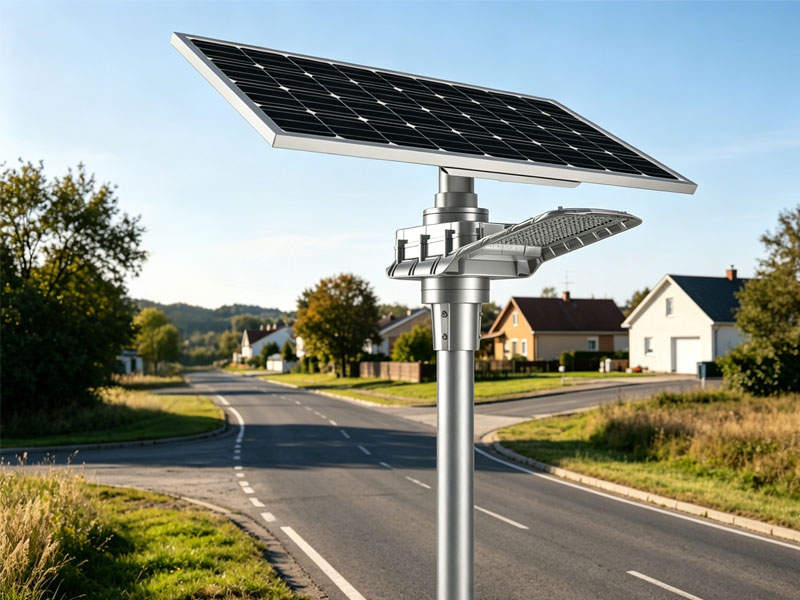

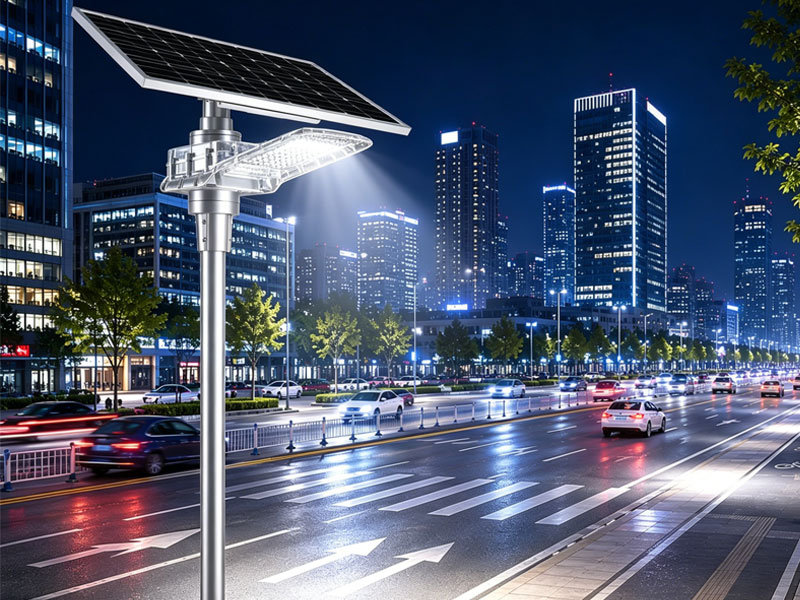

Applications:
| Type | RS-SL200P | RS-SL300P |
| Solar Panel | 120W / 18V | 150W / 18V |
| LiFePO4 Battery | 512WH | 640WH |
| Charge Cycle Times | 2000 times | |
| Luminous Flux | 11900-12600LM | 13600-14400LM |
| Lamp Power | 80W | 100W |
| LED qty | 140pcs | |
| Lifespan of LED | 50000hrs | |
| Color Temperature | 3000-7500K | |
| Light Distribution | Batwing lens with polarized light | |
| Lighting time(full charged) | 5-7 rainy days | |
| Working temperature | -20℃~60℃ (Charge above 0℃) | |
| Top diameter of pole | 76mm | |
| Mounting height | 8-10m | 9-10m |
| Installation spacing | 30-40m | |
Advantages
Elite Bionic Sailing Aesthetics: The Solar Sailing Light 3 features a refined, streamlined "Sailing Boat" silhouette, designed to blend seamlessly into modern cityscapes, luxury waterfronts, and high-end commercial districts.
Aerodynamic Wind-Resistant Profile: Its unique curved design is not only for beauty—it significantly reduces wind load, making it one of the most stable and safe integrated solar lights for coastal and high-wind regions.
Dynamic Dual-Way Adjustability: Engineered with a 360° rotatable solar panel and a multi-angle adjustable LED head, it guarantees 100% solar harvesting efficiency regardless of the pole's orientation.
Next-Gen MPPT Intelligence: Integrated with a proprietary Smart-Control MPPT system that optimizes charging efficiency by up to 30%, ensuring stable lighting even during consecutive weeks of rain or snow.
Military-Grade LiFePO4 Battery: Built with high-density Lithium Iron Phosphate cells, offering 2,000+ deep cycles and an extended service life of 8-10 years with zero maintenance.

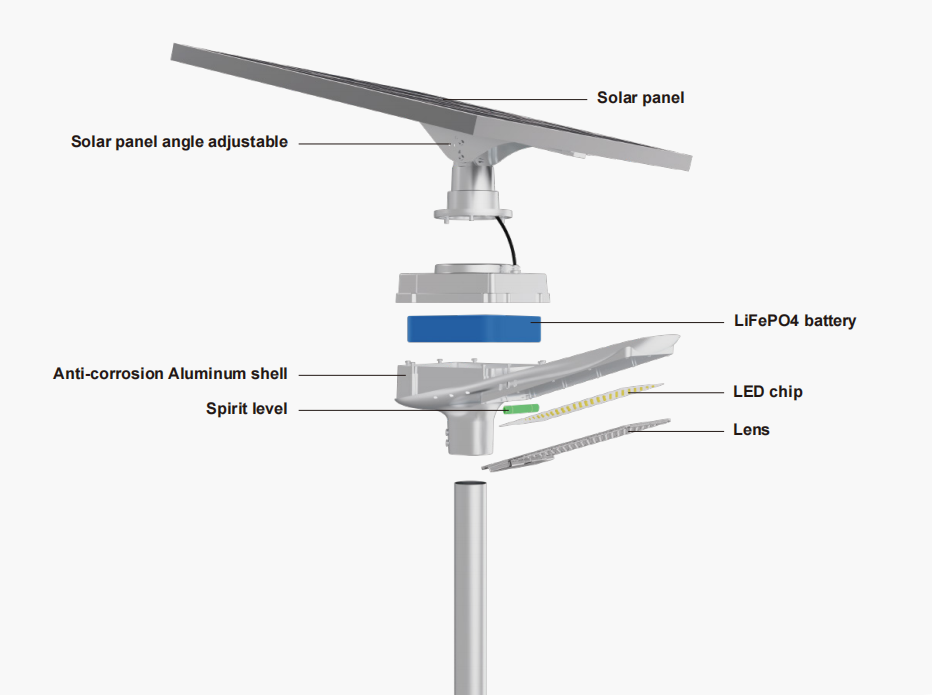

Detail Showcase
Solar Panel Angle Adjustable
Tilting “sail” bracket lets installers set the panel’s pitch for optimal seasonal harvest.
Read More
Solar Panel
High-efficiency mono module bonded to an aerodynamic aluminum frame.
Read More
Anti-corrosion Aluminum Shell
Marine-grade enclosure protects electronics in seaside or desert climates.
Read More
LiFePO₄ Battery
Single-string pack housed inside the arm for balanced weight and easy service.
Read More
Spirit Level
Built-in bubble level speeds precise alignment during pole-top installation.
Read More
Lens
RoadSmart patent bat-wing lens delivers wide, uniform light with minimal glare.
Read More

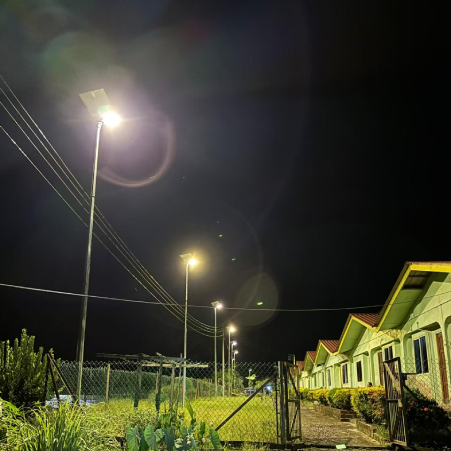

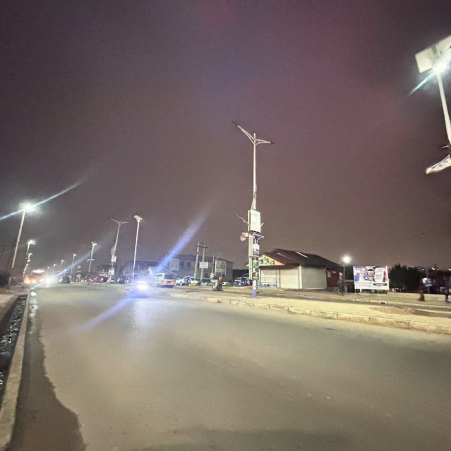

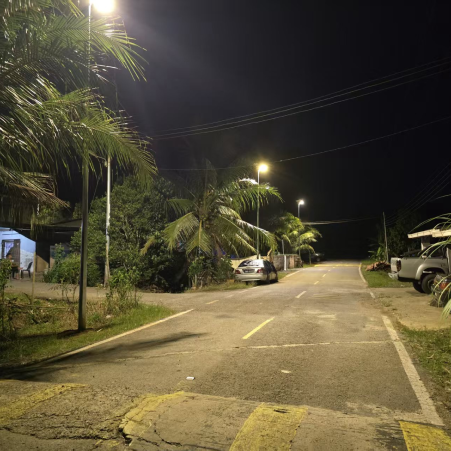

Application
Redefining the Horizon: Solar Sailing Light 3
The Solar Sailing Light 3 represents the pinnacle of architectural solar lighting. As the premium successor in the Sailing series, it addresses the dual needs of high-performance illumination and sophisticated industrial design. This is the ideal integrated solar street light for architects and urban planners who refuse to compromise on aesthetics.
Constructed from high-pressure die-cast aluminum with a specialized anti-corrosion coating, the Solar Sailing Light 3 is built for longevity. Its high-efficiency monocrystalline solar panel and 200lm/W LED output provide a powerful, eco-friendly lighting solution that eliminates energy bills. Whether it’s a marina, a corporate campus, or a luxury boulevard, the Sailing 3 provides a "Smart City" ready interface that supports intelligent dimming and motion sensing to conserve energy and reduce light pollution.
Invest in the future of urban infrastructure with a lighting solution that is as beautiful as it is powerful.
Delivery
1、Demand Analysis
● Consultation
● Requirements Confirmation
● Environmental Assessment
2、Solution Design
● Component Selection
● System Configuration
● Preliminary Quotation
3、Raw Material Procurement
● Supplier Selection
● Quality Inspection
● Production
● Packaging
4、Installation
● Civil Works
● Mounting
● System Debugging
5、Client Training
● Operation Training
● Maintenance Workshop
● Documentation Delivery
6、After-Sales Support
● 24/7 Helpdesk
● Preventive Maintenance
● Spare Parts Guarantee
7、Feedback Integration
● KPI Monitoring
● Design Iteration
● Client Satisfaction Surveys
Related Products
FAQ
Does Sailing Ⅲ support smart dimming schedules?
Built-in IPC 5.0 offers preset dim/bright intervals and motion-sensor activation, all selectable via handheld remote.
Can the panel angle be changed after installation?
Yes. The adjustable bracket allows on-site tilt changes with a single wrench, improving winter energy capture in high-latitude regions.
What makes Sailing Ⅲ an all-in-two solar street light?
The LED head and LiFePO₄ battery form one module, while the tilt-adjustable “sail” panel mounts separately, letting you optimize the solar angle without extra wiring.
