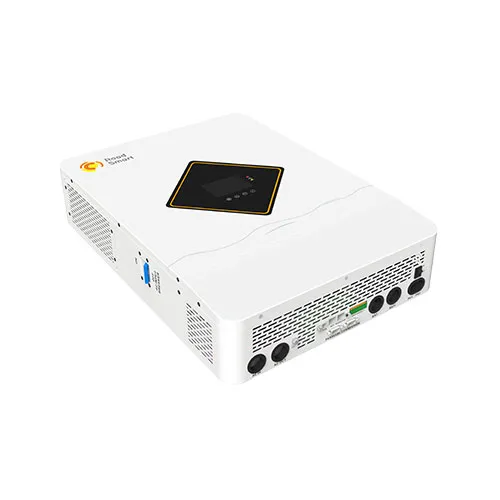

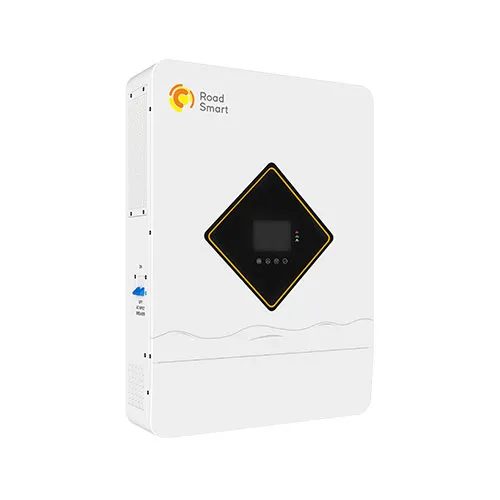

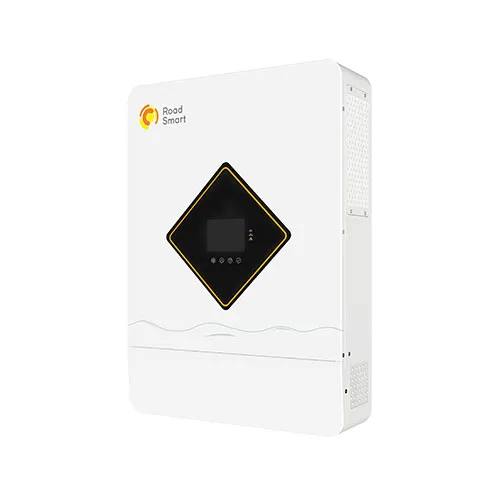

| MODEL | IVC-4810SP | Can Be Set |
| INVERTER OUTPUT | ||
| Rated Output Power | 10,000W | |
| Max.Peak Power | 20,000VA | |
| Rated Output Voltage | 230Vac, single-phase / three-phase, be paralleled | ✔ |
| Load Capacity of Motors | 6HP | |
| Rated AC Frequency | 50/60Hz | ✔ |
| Switch Time | 10ms(typical) | |
| Parallel Capacity | 1～6 Units | |
| Output Mode | Off-grid (default) / Hybrid | ✔ |
| BATTERY | ||
| Battery Type | Lead-acid / Li-ion / User defined | ✔ |
| Rated Battery Voltage | 48Vdc | |
| Voltage Range | 40-60Vdc | ✔ |
| Max.MPPT Charging Current | 200A | ✔ |
| Max.Mains/Generator Charging Current | 120A | ✔ |
| Max.Hybrid Charging Current | 200A | ✔ |
| PV INPUT | ||
| Num. of MPPT Trackers | 2 | |
| Max.PV Array Power | 5,500W+5,500W | |
| Max.Input Current | 22A/22A | |
| Max.Voltage of Open Circuit | 500Vdc+500Vdc | |
| MPPT Voltage Range | 125-425Vdc | |
| MAINS/GENERATOR INPUT | ||
| Input Voltage Range | 90～275Vac | |
| Frequency Range | 50/60Hz | |
| Bypass Overload Current | 63A | |
| EFFICIENCY | ||
| MPPT Tracking Efficiency | 99.90% | |
| Max. Battery Inverter Efficiency | 92% | |
| GENERAL | ||
| Dimension | 620*445*130mm | |
| Weight | 27kg | |
| Protection Degree | IP20 | |
| Operating Temperature Range | -10~55℃, >45℃ derated | |
| Noise | ＜60dB | |
| Cooling Method | Internal Fan | |
| COMMUNICATION | ||
| Embedded Interfaces | RS485/CAN/USB/Dry contact | ✔ |
| External Modules（Optional） | Wi-Fi / GPRS | ✔ |
