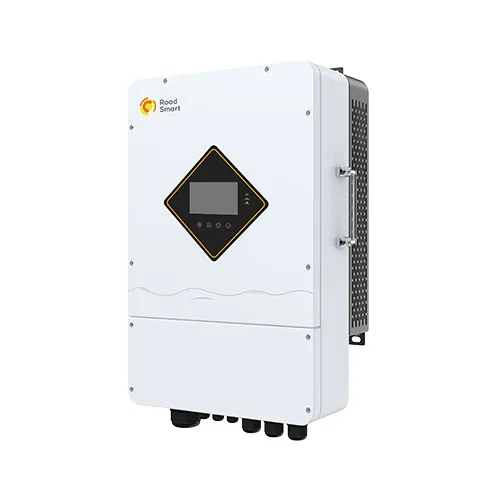

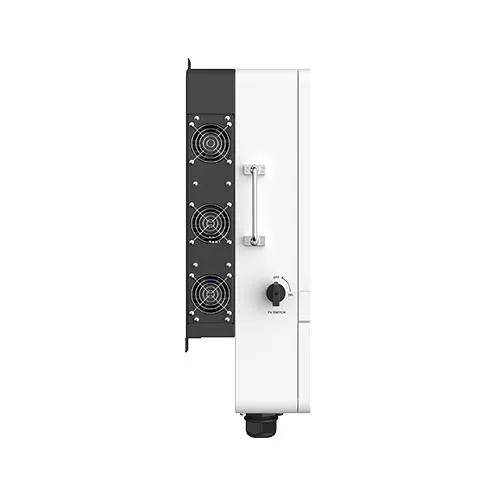

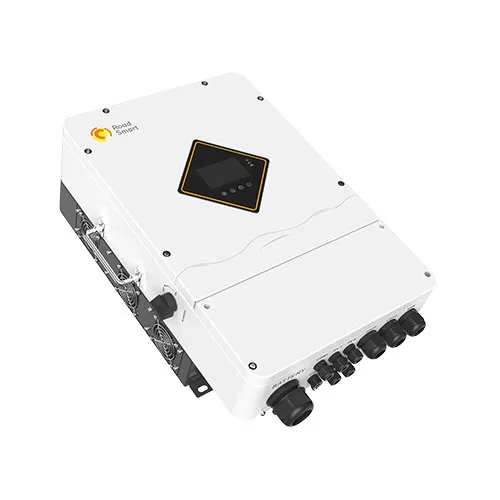

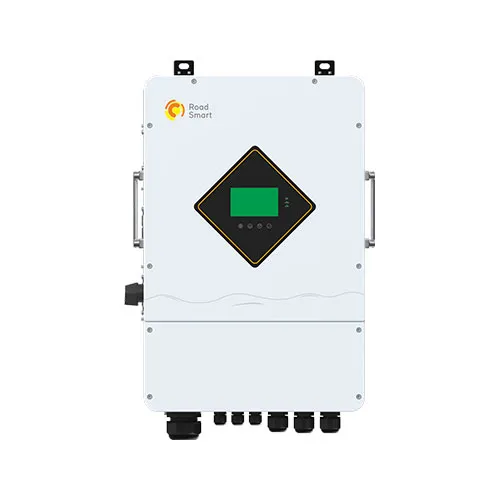

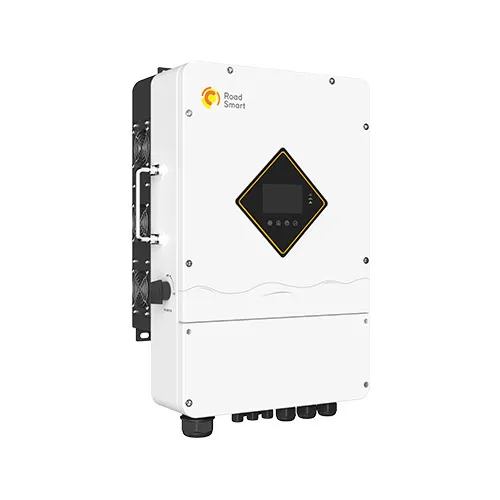

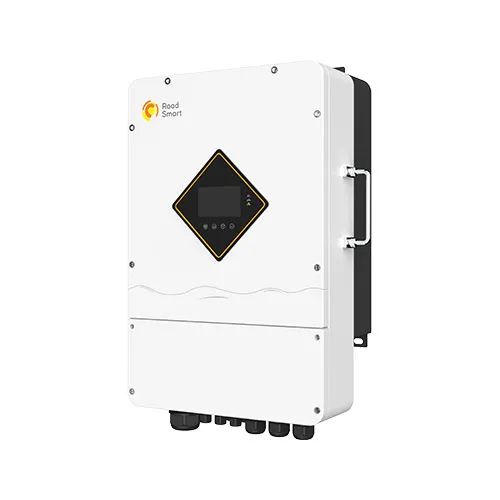

| MODEL | IVB-4812SP |
| INVERTER OUTPUT | |
| Rated Output Power | 12,000W |
| Max.Peak Power | 24,000VA |
| Rated Output Voltage | 6HP |
| 230Vac ±5%（Single-Phase L+N+PE） | 50/60Hz ±0.3 |
| Load Capacity of Motors | 10ms(typical) |
| Rated AC Frequency | Parallel Capacity |
| Switch Time | 1～6 Units（More than 3 units in parallel can form a three-phase output） |
| AC OUTPUT（GRID） | |
| Rated Output Power | 12,000W |
| Max. Output Power | 12,000VA |
| Rated Output Current | 52.2A |
| Max. Output Current | 54.4A |
| Power Factor | 0.8 leading/0.8 lagging |
| THD | <3% |
| BATTERY | |
| Battery Type | Lead-acid / Li-ion / User defined |
| Rated Battery Voltage | 48Vdc |
| Voltage Range | 40-60Vdc |
| Max.MPPT Charging Current | 200A |
| Max.Mains/Generator Charging | 120A |
| Max.Hybrid Charging Current | 200A |
| PV INPUT | |
| Num. of MPPT Trackers | 2 |
| Max.PV Array Power | 6,600W+6,600W |
| Max.Input Current | 22A/22A |
| Max.Voltage of Open Circuit | 500Vdc+500Vdc |
| MPPT Voltage Range | 120-450Vdc |
| MAINS/GENERATOR INPUT | |
| Input Voltage Range | UPS mode：170～280Vac；APL mode：90～280Vac |
| Frequency Range | 50/60Hz |
| Bypass Overload Current | 63A |
| EFFICIENCY | |
| MPPT Tracking Efficiency | 99.90% |
| Max. Efficiency | 97.50% |
| European Efficiency | 97% |
| GENERAL | |
| Dimension | 670*440*220mm |
| Weight | 37kg |
| Protection Degree | IP65 |
| Operating Temperature Range | -25～60°C, >45°C Derate |
| Noise | ＜60dB |
| Cooling Method | Fan Cooling |
| COMMUNICATION | |
| Embedded Interfaces | RS485/CAN/USB/Dry contact |
| External Modules（Optional） | Wi-Fi / GPRS |
