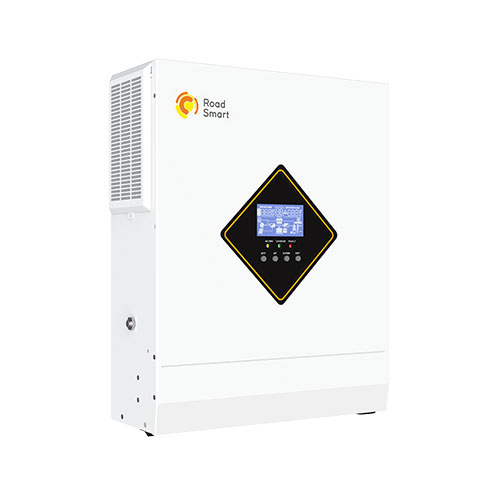

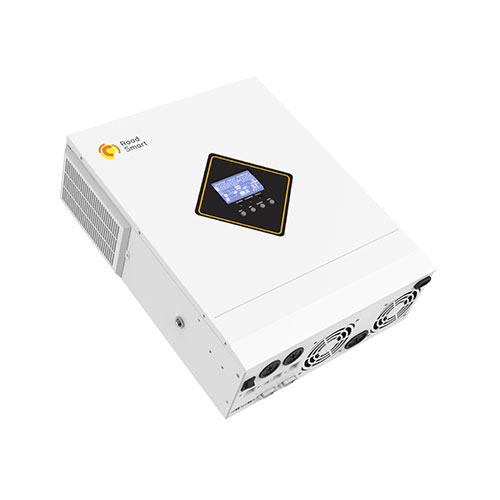

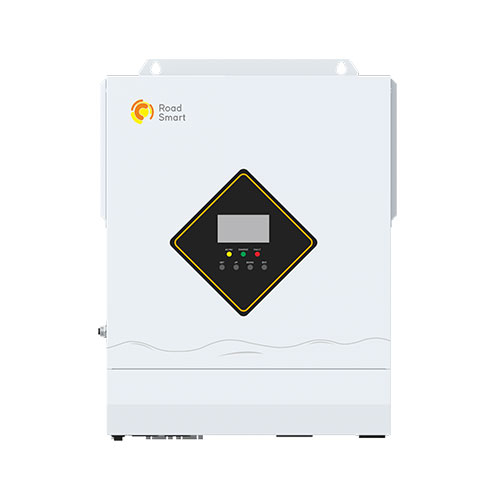

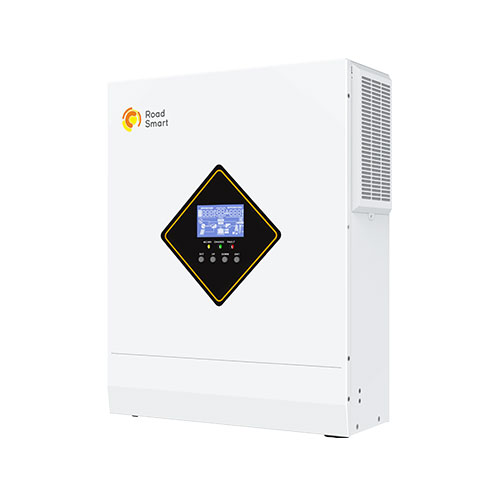

| MODEL | IVA-4805SP | Can Be Set |
| INVERTER OUTPUT | ||
| Rated Output Power | 5,000W | |
| Max.Peak Power | 10,000VA | |
| Rated Output Voltage | 230Vac（single phase/three phase） | ✔ |
| Load Capacity of Motors | 4HP | |
| Rated AC Frequency | 50/60Hz | |
| Waveform | Pure Sine Wave | |
| Switch Time | 10ms(typical) | |
| Parallel Capacity | 1-6 | |
| BATTERY | ||
| Battery Type | Lead-acid / Li-ion / User defined | ✔ |
| Rated Battery Voltage | 48Vdc | |
| Voltage Range | 40-60Vdc | ✔ |
| Max.MPPT Charging Current | 80A | ✔ |
| Max.Mains/Generator Charging Current | 60A | ✔ |
| Max.Hybrid Charging Current | 80A | ✔ |
| PV INPUT | ||
| Num. of MPPT Trackers | 1 | |
| Max.PV Array Power | 5,500W | |
| Max.Input Current | 22A | |
| Max.Voltage of Open Circuit | 500Vdc | |
| MPPT Voltage Range | 120-450Vdc | |
| MAINS/GENERATOR INPUT | ||
| Input Voltage Range | UPS：170~280Vac APL：90~280Vac | ✔ |
| Frequency Range | 50/60Hz | ✔ |
| Bypass Overload Current | 40A | |
| EFFICIENCY | ||
| MPPT Tracking Efficiency | 99.90% | |
| Max. Battery Inverter Efficiency | 92% | |
| GENERAL | ||
| Dimension | 426*322*124mm | |
| Weight | 10.8kg | |
| Protection Degree | IP20, only indoor | |
| Operating Temperature Range | -10℃~55℃ (14°F~131°F) | |
| Noise | ＜60dB | |
| Cooling Method | Internal Fan | |
| COMMUNICATION | ||
| Embedded Interfaces | RS485/CAN/USB/Dry contact | |
| External Modules（Optional） | Wi-Fi / GPRS | |
