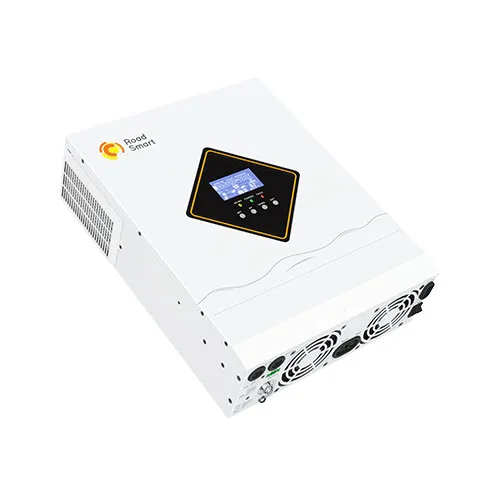

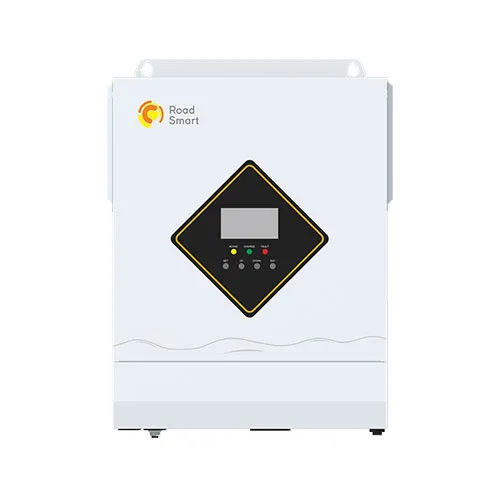

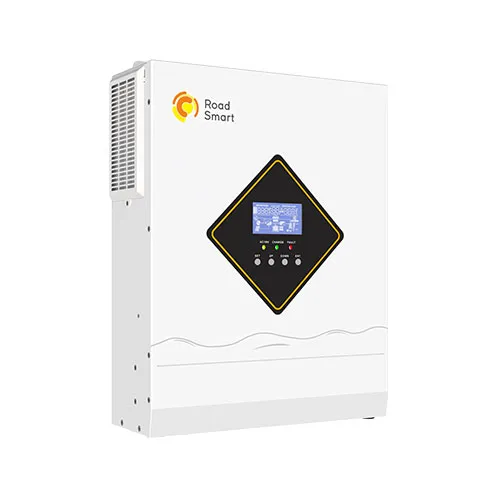

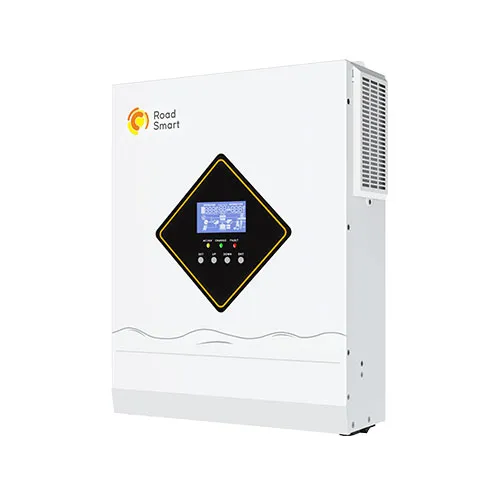

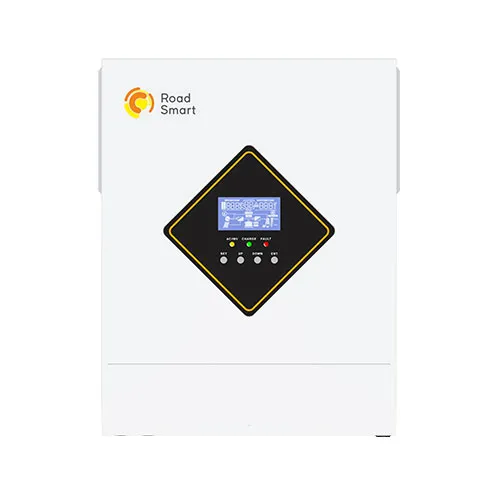

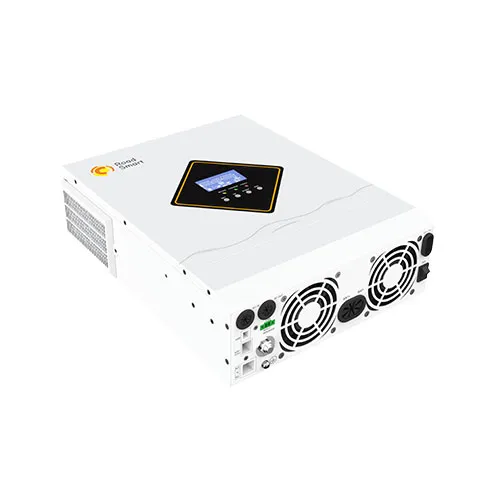

| MODEL | IVA-2403S | Can Be Set |
| INVERTER OUTPUT | ||
| Rated Output Power | 3,300W | |
| Max.Peak Power | 6,000VA | |
| Rated Output Voltage | 230Vac（L/N/PE single phase） | ✔ |
| Load Capacity of Motors | 2HP | |
| Rated AC Frequency | 50/60Hz | |
| Waveform | Pure Sine Wave | |
| Switch Time | 10ms(typical) | |
| BATTERY | ||
| Battery Type | Lead-acid / Li-ion / User defined | ✔ |
| Rated Battery Voltage | 24Vdc | |
| Voltage Range | 20-33Vdc | ✔ |
| Max.MPPT Charging Current | 80A | ✔ |
| Max.Mains/Generator Charging Current | 80A | ✔ |
| Max.Hybrid Charging Current | 80A | ✔ |
| PV INPUT | ||
| Num. of MPPT Trackers | 1 | |
| Max.PV Array Power | 4,000W | |
| Max.Input Current | 13A | |
| Max.Voltage of Open Circuit | 500Vdc | |
| MPPT Voltage Range | 120-450Vdc | |
| MAINS/GENERATOR INPUT | ||
| Input Voltage Range | UPS：170~280Vac APL：90~280Vac | ✔ |
| Frequency Range | 50/60Hz | ✔ |
| Bypass Overload Current | 30A | |
| EFFICIENCY | ||
| MPPT Tracking Efficiency | 99.90% | |
| Max. Battery Inverter Efficiency | 92% | |
| GENERAL | ||
| Dimension | 378*280*103mm | |
| Weight | 6.9kg | |
| Protection Degree | IP20, only indoor | |
| Operating Temperature Range | -10℃~55℃ (14°F~131°F) | |
| Noise | ＜60dB | |
| Cooling Method | Internal Fan | |
| COMMUNICATION | ||
| Embedded Interfaces | RS485/CAN/USB/Dry contact | |
| External Modules（Optional） | Wi-Fi / GPRS | |
